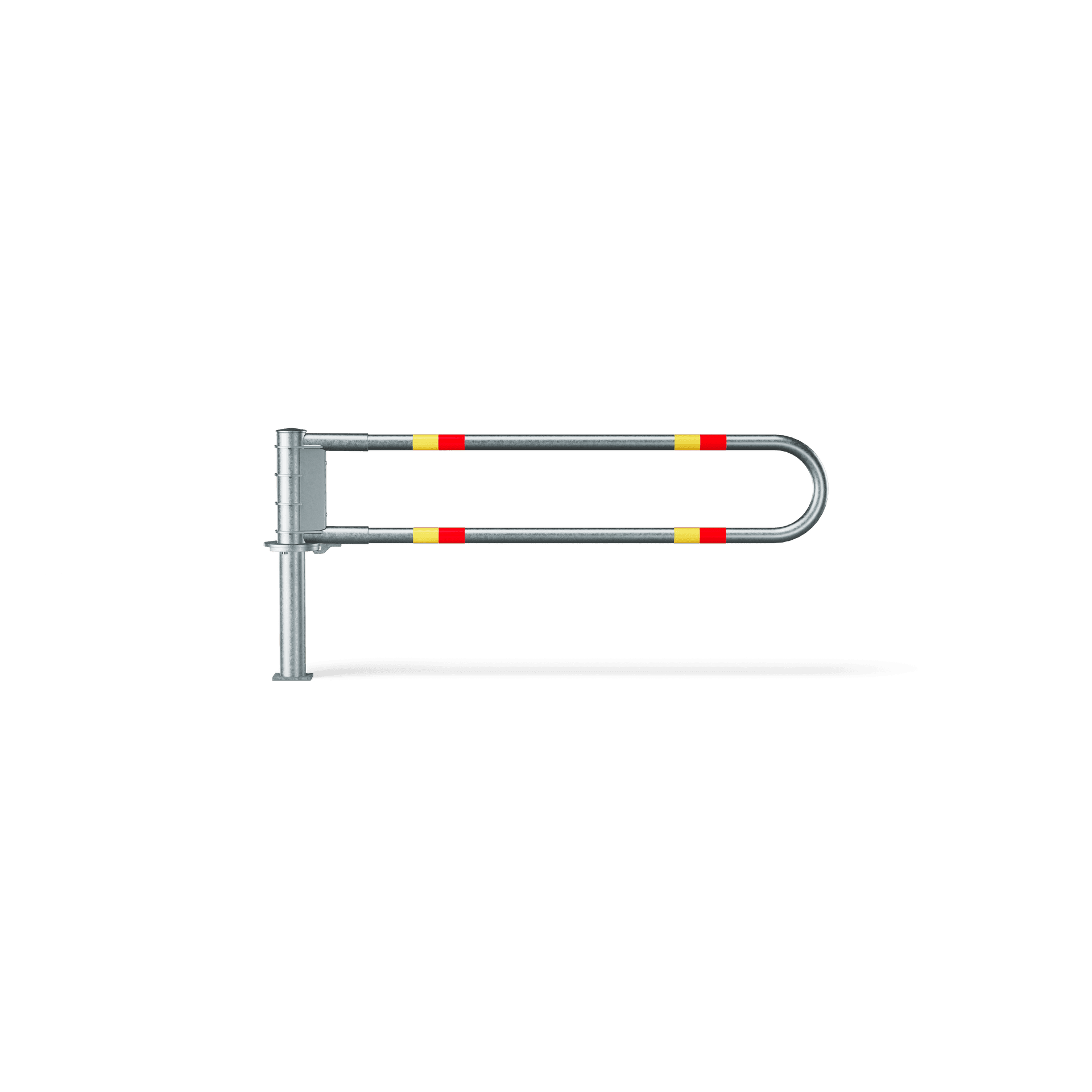

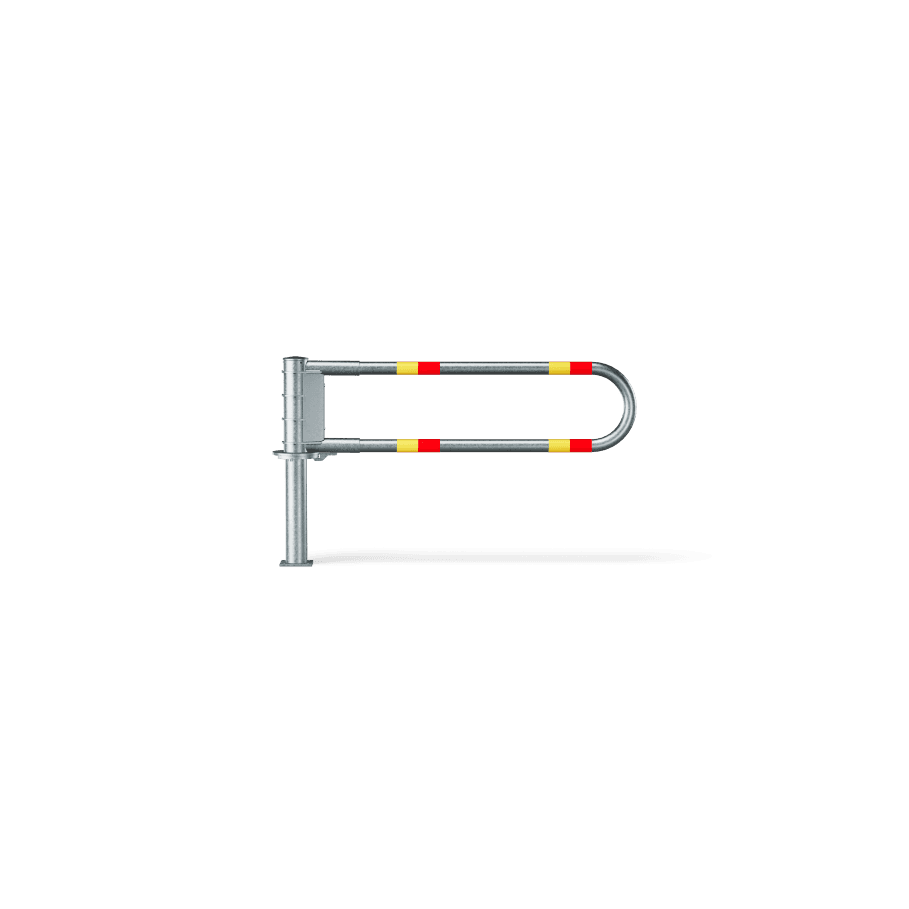

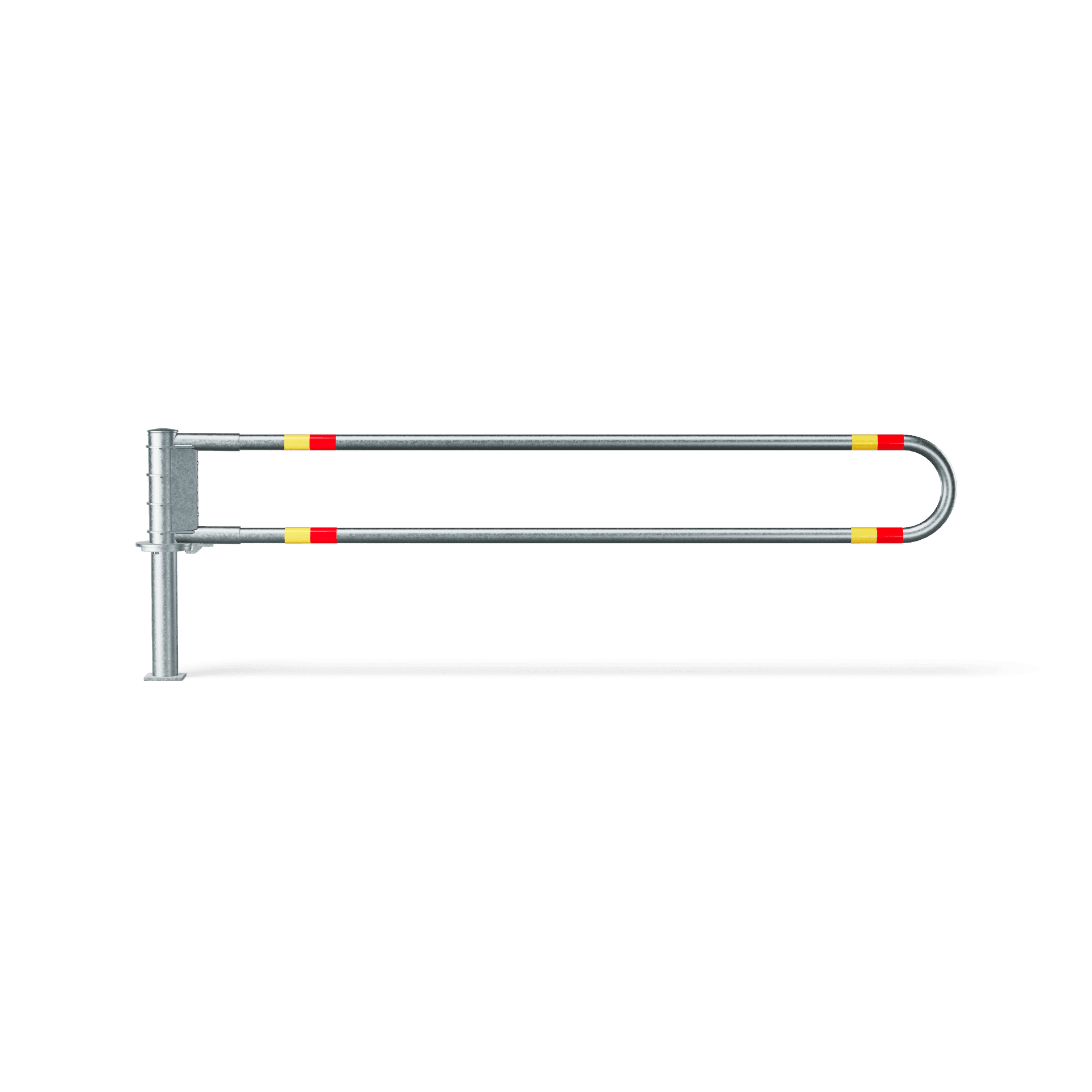

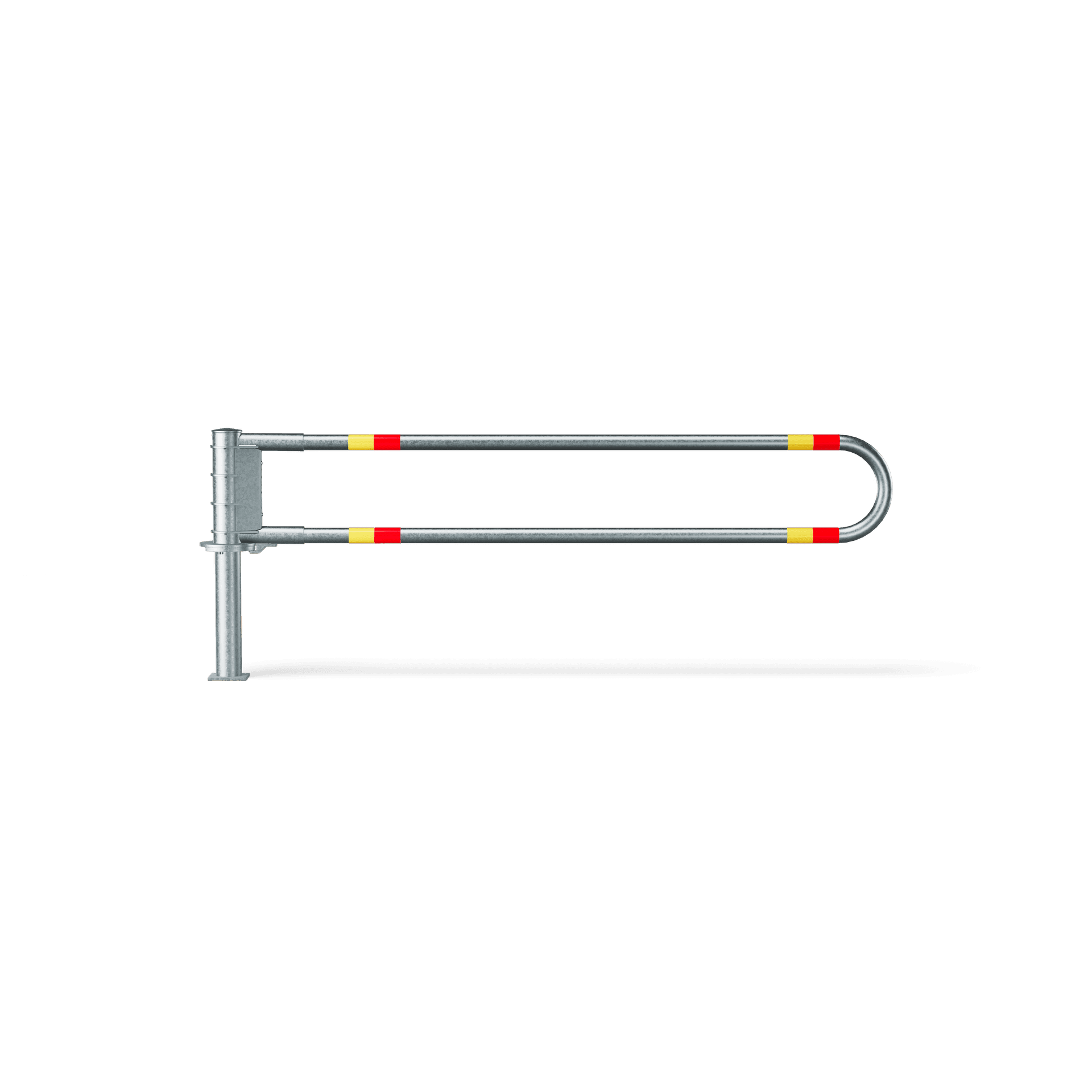

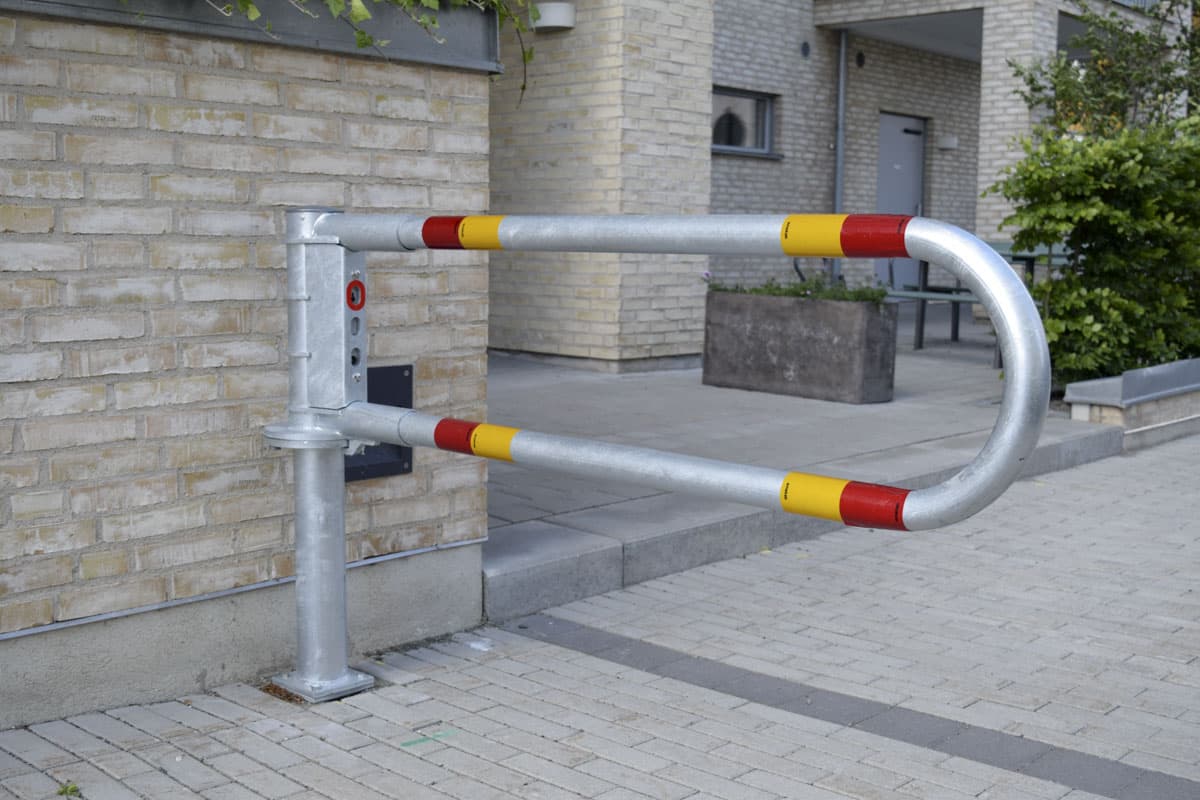

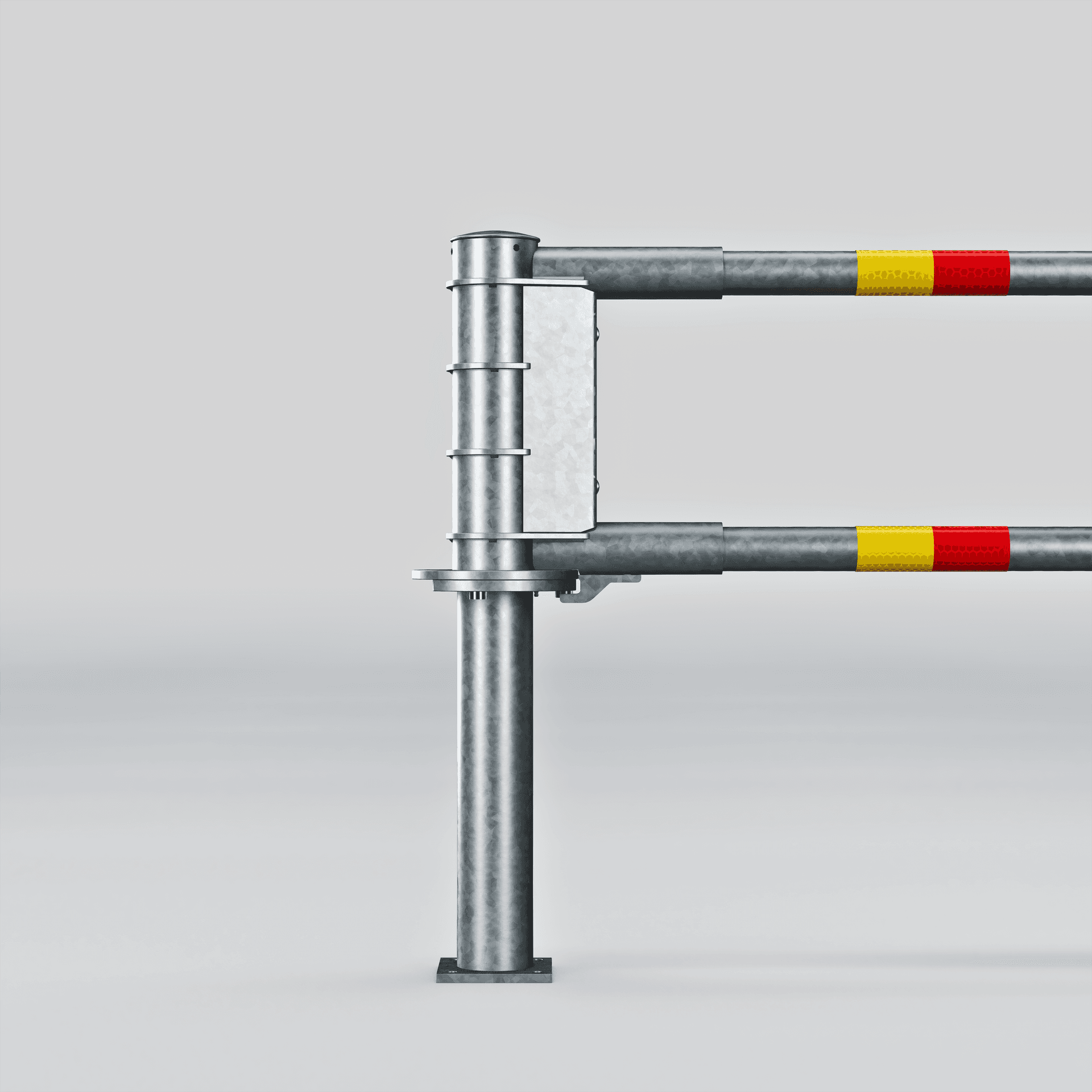

Vehicle barrier BAX

BAX car barriers are the result of our quest for superior user-friendliness. With options such as manual or electrically controlled opening and flexible lock options, BAX meets the requirements that are sought to ensure that accessibility in a residential area, for example, suits all needs, for residents as well as emergency services.

Recommended colors

For more information about Smekab Citylife's complete range of RAL colours, see the colour chart.

Colour chart

Recommended colors

VFZ
RAL9005

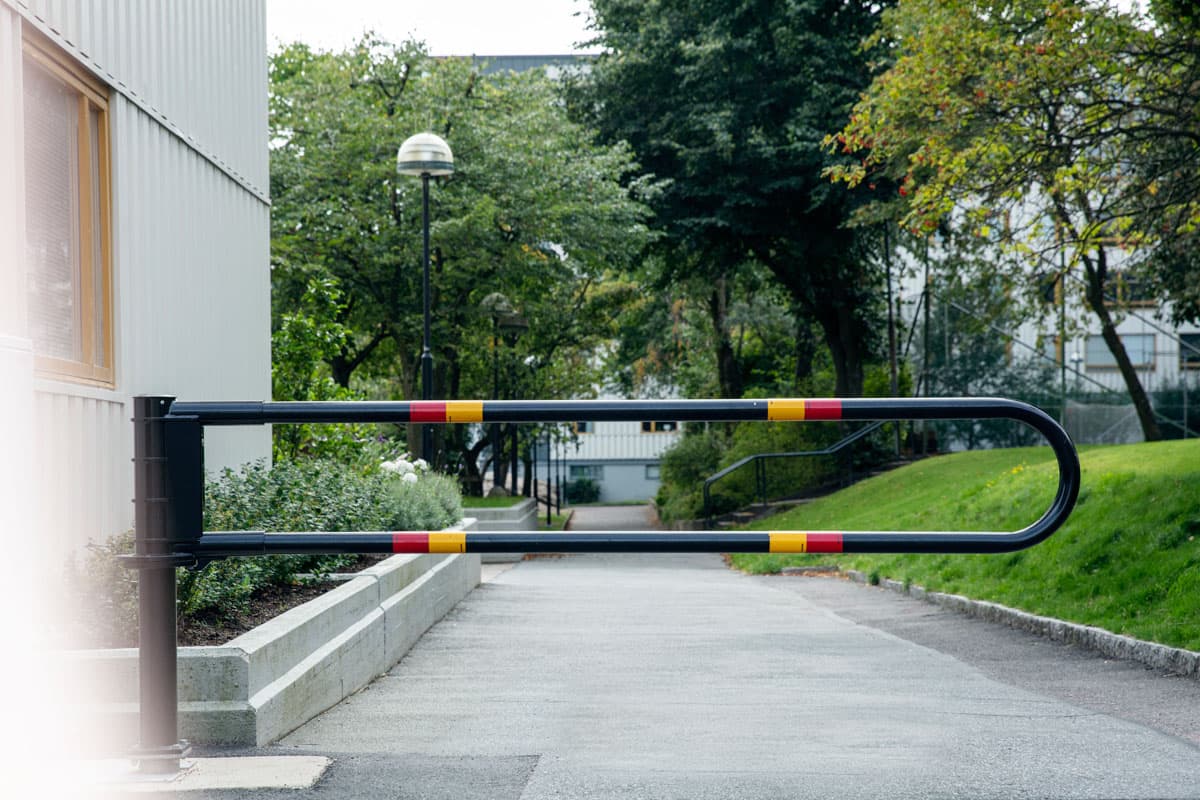

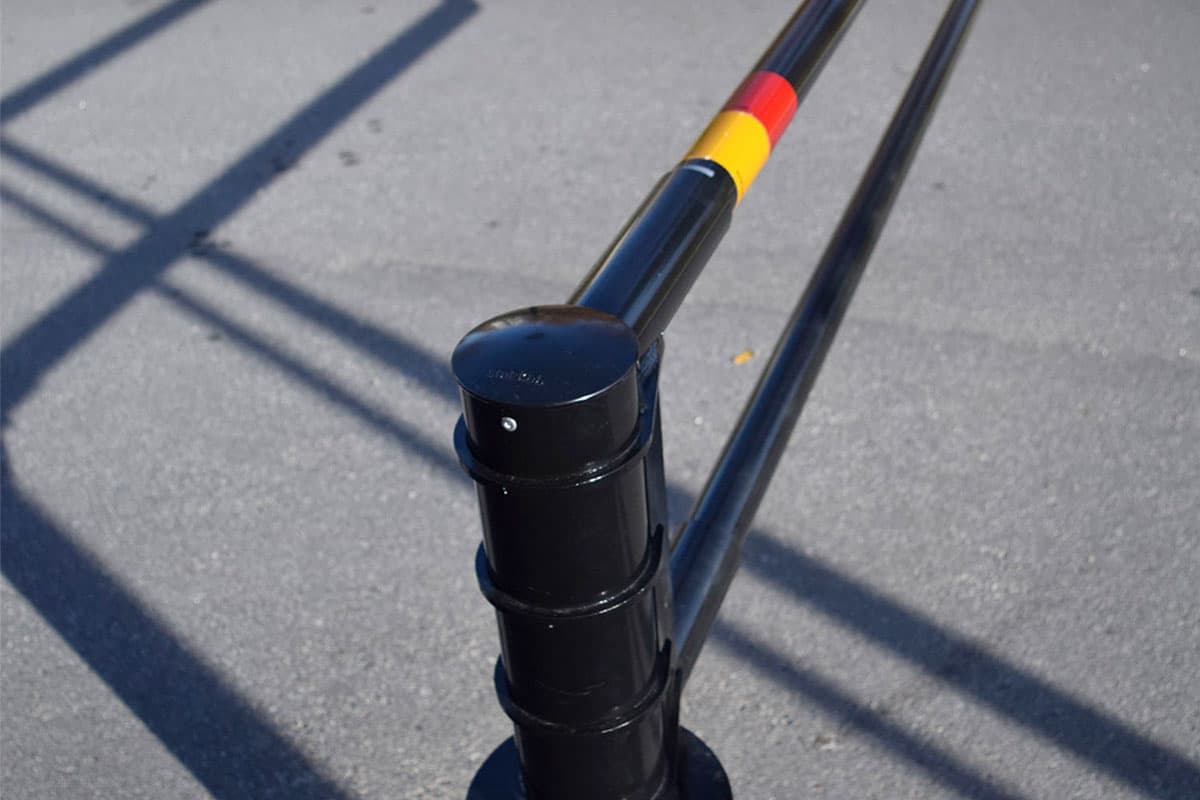

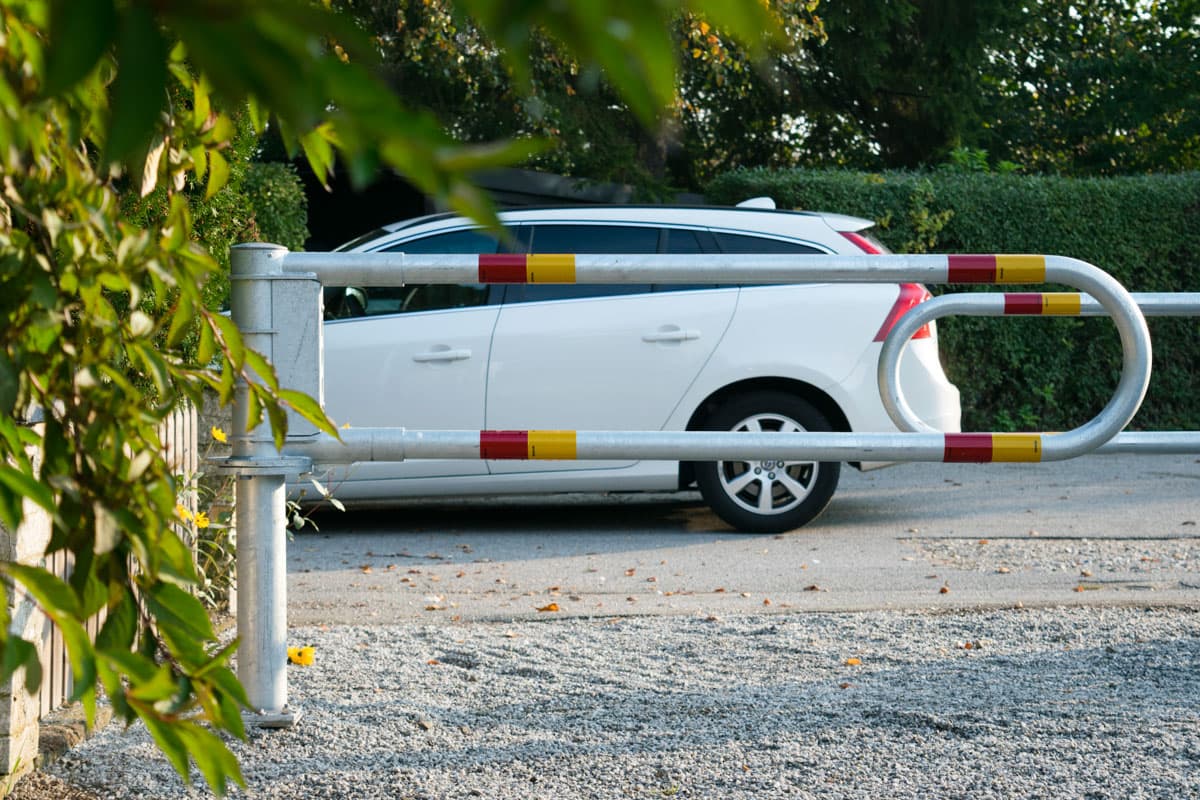

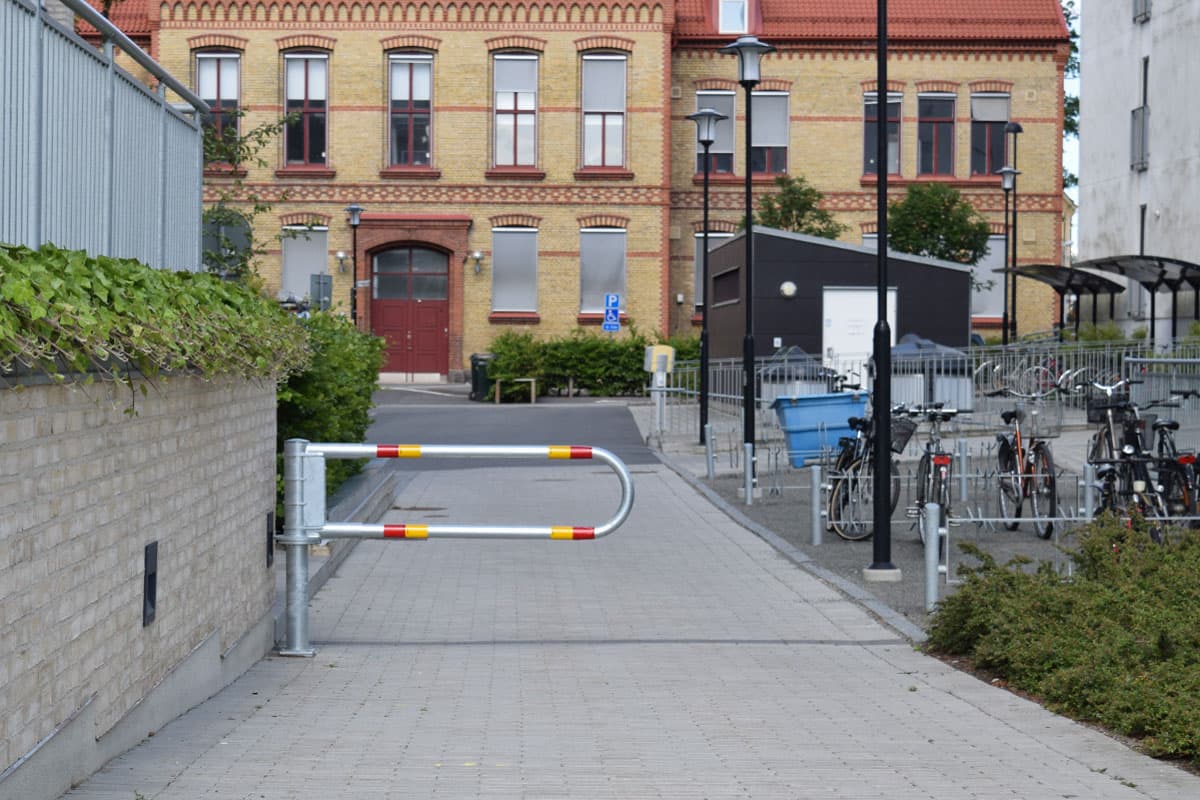

Inspiration

Facts

Product name
Vehicle barrier BAX
Designer
Smekab Citylife
Produced by
Smekab Citylife
Properties
  • Opens 90° clockwise/counter-clockwise
  • With 1/2/3 locks
  • Manual opening
  • Can be equipped with electric control system
  • Lockable in open position

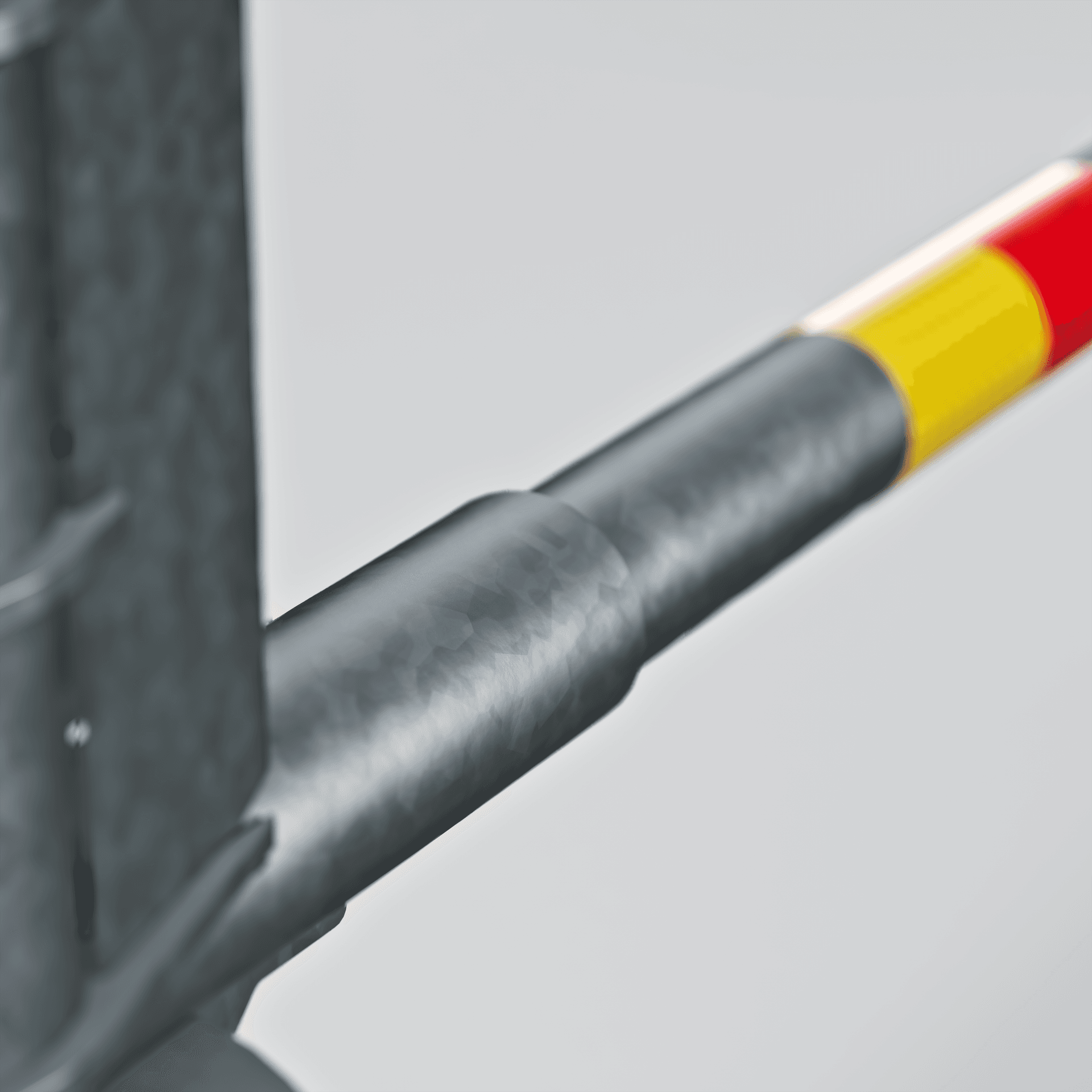

Material
  • Steel, hot galvanized
  • Steel, hot galvanized and powder coated
Anchoring
Bolting

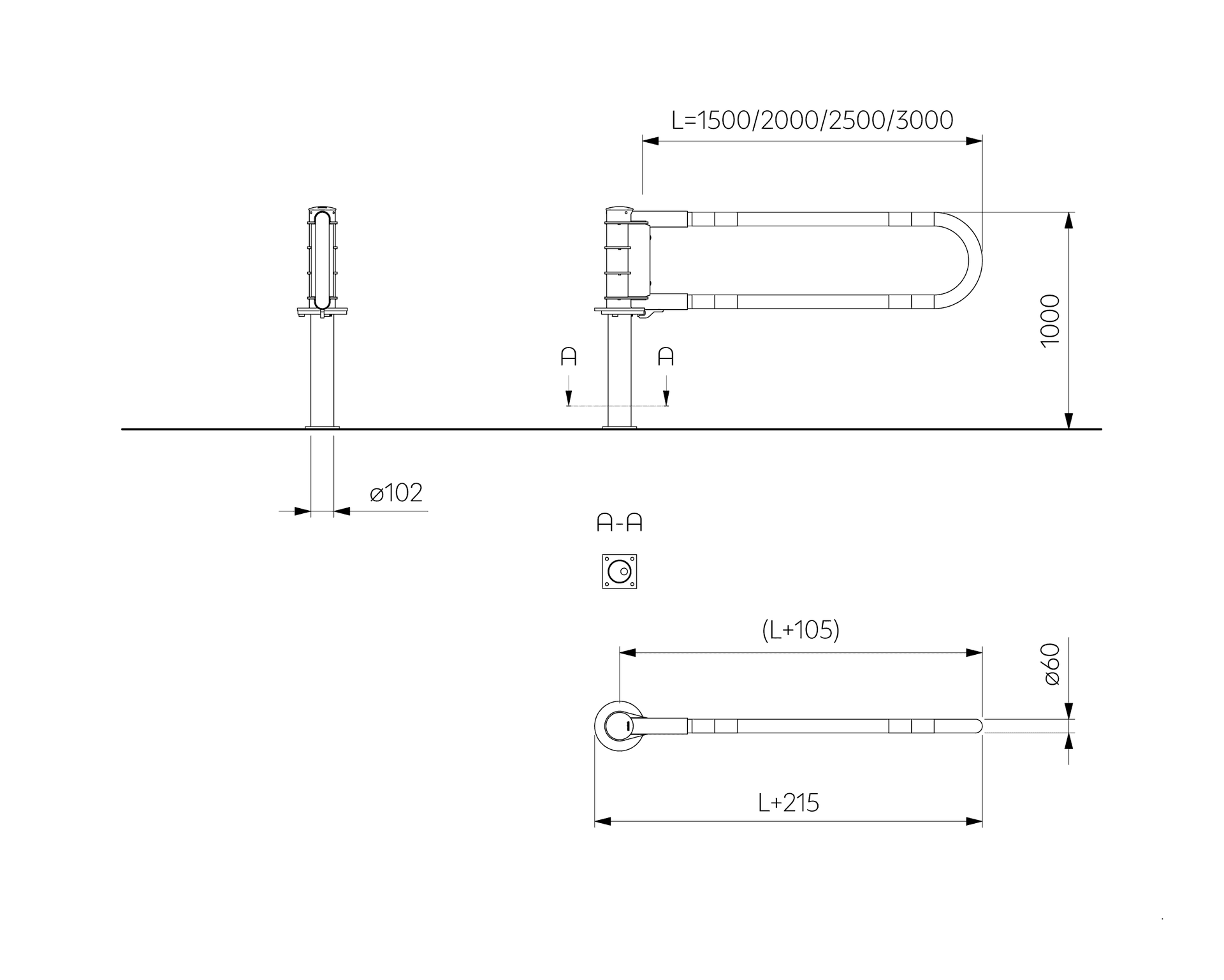

Height
1000 mm
Length
1500, 2000, 2500, 3000 mm
Diameter gate
60 mm
Diameter Post
102 mm

Articles

Here you will find information about articles and accessories.

Articles

Art. no.NameColourReflective tapeLength
776015444Bilspärr BAX L=1500Yellow + red1500 mm
776015444BBilspärr BAX L=1500 RAL9005RAL9005Yellow + red1500 mm
776015444XBilspärr BAX L=1500 RAL____Other RAL coloursYellow + red1500 mm
776020444Bilspärr BAX L=2000Yellow + red2000 mm
776020444BBilspärr BAX L=2000 RAL9005RAL9005Yellow + red2000 mm
776020444XBilspärr BAX L=2000 RAL____Other RAL coloursYellow + red2000 mm
776025444Bilspärr BAX L=2500Yellow + red2500 mm
776025444BBilspärr BAX L=2500 RAL9005RAL9005Yellow + red2500 mm
776025444XBilspärr BAX L=2500 RAL____Other RAL coloursYellow + red2500 mm
776030444Bilspärr BAX L=3000Yellow + red3000 mm
776030444BBilspärr BAX L=3000 RAL9005RAL9005Yellow + red3000 mm
776030444XBilspärr BAX L=3000 RAL____Other RAL coloursYellow + red3000 mm
776315444Bilspärr BAX L=1500 Låsbar i öppet lägeYellow + red1500 mm
776315444BBilspärr BAX L=1500 Låsbar i öppet läge RAL9005RAL9005Yellow + red1500 mm
776315444XBilspärr BAX L=1500 Låsbar i öppet läge RAL____Other RAL coloursYellow + red1500 mm
776320444Bilspärr BAX L=2000 Låsbar i öppet lägeYellow + red2000 mm
776320444BBilspärr BAX L=2000 Låsbar i öppet läge RAL9005RAL9005Yellow + red2000 mm
776320444XBilspärr BAX L=2000 Låsbar i öppet läge RAL____Other RAL coloursYellow + red2000 mm
776325444Bilspärr BAX L=2500 Låsbar i öppet lägeYellow + red2500 mm
776325444BBilspärr BAX L=2500 Låsbar i öppet läge RAL9005RAL9005Yellow + red2500 mm
776325444XBilspärr BAX L=2500 Låsbar i öppet läge RAL____Other RAL coloursYellow + red2500 mm
776330444Bilspärr BAX L=3000 Låsbar i öppet lägeYellow + red3000 mm
776330444BBilspärr BAX L=3000 Låsbar i öppet läge RAL9005RAL9005Yellow + red3000 mm
776330444XBilspärr BAX L=3000 Låsbar i öppet läge RAL____Other RAL coloursYellow + red3000 mm

Options, anchoring

Barriers

Precast concrete foundation, vehicle barrier, with electrically controlled swivel unit

Barriers

Cast-in foundation, vechicle barrier, with electric rotary unit

Barriers

Precast concrete foundation, vechicle barrier/barriers

Barriers

Cast-in foundation, vechicle barrier/barriers
